Bone Char vs Activated Carbon: Choosing the Right Water Treatment Media

In 2019, a water treatment engineer in Nairobi faced a decision that would affect 80,000 people. The community's defluoridation system needed new media. Activated carbon was the obvious choice on paper. It had higher surface area and name recognition.

But the local supplier could not guarantee consistent activated carbon quality. Importing it would triple the operating budget.

The engineer tested bone char instead. The system ran for three years with quarterly replacement at one-fifth the cost.

This scenario illustrates why the bone char vs activated carbon debate is not about finding a winner. It is about finding the right match for your water chemistry, budget, and supply chain reality.

Both media remove contaminants through adsorption. Both have defined roles in water treatment. The difference lies in where each performs best.

This guide compares bone char vs activated carbon across performance, cost, and applications. We cover how each media works, where one outperforms the other, and what procurement managers should verify before placing bulk orders.

Evaluating adsorption media for your water treatment project? Explore Feilong bone carbon solutions.

What Is Bone Char?

Bone char, also called bone carbon, is a natural adsorption media produced by carbonizing defatted animal bones in a controlled, low-oxygen environment. Unlike activated carbon, which is manufactured from wood, coal, or coconut shell, bone char derives from bovine bone material.

The carbonization process creates a porous carbon structure with significant surface area for adsorption. Bone char also retains calcium phosphate and calcium carbonate minerals from the original bone material. This gives it unique ion exchange properties that pure activated carbon does not possess.

Key physical properties of bone char include:

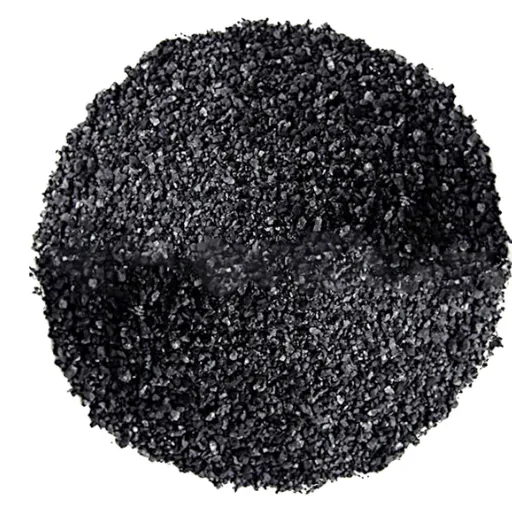

• Appearance: Black to dark gray granules or powder

• Surface area: 50-150 m²/g (moderate compared to activated carbon)

• Composition: Carbon matrix with calcium phosphate and calcium carbonate

• pH: Generally alkaline (8.5-10.5)

• Bulk density: 0.5-0.8 g/cm³

Bone char has been used in water treatment for over a century. Its longest-established application is in sugar refining, where it decolorizes syrup by adsorbing organic pigments and certain minerals. In recent decades, bone char has gained attention for municipal and industrial water treatment, particularly in regions where natural, low-cost media are preferred. Learn more about bone char water treatment applications in our detailed guide.

What Is Activated Carbon?

Activated carbon is a synthetic adsorption media manufactured by heating carbon-rich materials to high temperatures in the presence of activating agents. Common source materials include wood, coal, coconut shell, and peat.

The activation process creates an extremely porous structure with surface areas ranging from 500 to 1,500 m²/g. This massive surface area makes activated carbon one of the most effective adsorption media available for organic contaminants, chlorine, and certain chemicals.

Activated carbon is produced in two main forms:

• Powdered activated carbon (PAC): Fine particles added directly to water for rapid adsorption

• Granular activated carbon (GAC): Larger particles used in packed bed columns for continuous flow treatment

The media dominates activated carbon filtration and the broader water treatment industry. Municipal systems, industrial plants, and household filtration units worldwide rely on activated carbon for its broad contaminant removal capability and well-documented performance.

How Bone Char and Activated Carbon Work

Both media remove contaminants through adsorption. Contaminant molecules attach to the surface of the media as water flows through. However, the mechanisms and selectivity differ in important ways.

Bone Char Adsorption Mechanism

Bone char removes contaminants through two simultaneous mechanisms:

Physical adsorption: The porous carbon structure traps organic molecules, colorants, and certain dissolved substances on its surface. This works similarly to activated carbon but with lower overall capacity due to smaller surface area.

Ion exchange: The calcium phosphate content interacts with certain ions in water. This property makes bone char effective for fluoride reduction and some metal ion removal. The hydroxyapatite structure can exchange hydroxyl ions for fluoride ions, locking them into the solid matrix.

Activated Carbon Adsorption Mechanism

Activated carbon relies almost entirely on physical adsorption. Its extremely high surface area creates millions of adsorption sites. Organic molecules, chlorine compounds, and certain pesticides attach to these sites through van der Waals forces.

The process is highly effective for:

• Organic contaminants and colorants

• Chlorine and chloramine residuals

• Certain pesticides and pharmaceutical traces

• Volatile organic compounds (VOCs)

Activated carbon does not remove dissolved minerals or ions effectively. It is not suitable for fluoride removal, water softening, or heavy metal reduction without specialized modification.

Bone Char vs Activated Carbon: Performance Comparison

The table below summarizes the bone char vs activated carbon key differences for water treatment applications.

A sugar refinery in Brazil learned this comparison firsthand. The facility had used activated carbon for syrup decolorization for years. Rising activated carbon prices pushed operating costs up 40% in two years.

The operations manager tested bone char as a partial replacement. Bone char removed the target colorants effectively at 60% of the activated carbon cost. The refinery now runs a blended system using bone char for primary decolorization and activated carbon for polishing. Annual media costs dropped by one-third.

Cost Analysis: Bone Char vs Activated Carbon

For procurement managers, cost is often the deciding factor. The comparison goes beyond price per kilogram.

Capital Costs

Bone char systems typically use simple fixed-bed columns. No specialized equipment is required beyond standard filtration vessels. This keeps initial capital investment low.

Activated carbon systems may require backwash equipment, regeneration infrastructure, or specialized contact tanks. For large municipal systems, these additions add significant capital cost.

Operating Costs

Bone char is generally cheaper per kilogram than high-quality activated carbon. However, bone char requires more frequent replacement due to lower capacity. The total operating cost depends on:

• Media unit price: Bone char typically 30-60% less per kg

• Replacement frequency: Bone char may need replacement 2-3x more often

• Disposal cost: Spent bone char may have different disposal requirements than activated carbon

• Labor for replacement: More frequent replacement means higher labor costs

Total Cost of Ownership

For systems treating water with high organic load and low mineral content, activated carbon often wins on total cost. Its higher capacity means longer runs between replacement.

For systems where fluoride or color removal is the primary goal, bone char can deliver lower total cost. The ion exchange property adds value that activated carbon cannot match without additional treatment steps.

Bone Char vs Activated Carbon: When to Choose Bone Char

Bone char is the better choice in specific scenarios where its unique properties provide advantages.

Fluoride Reduction

Bone char's calcium phosphate content enables fluoride ion exchange. In regions with natural fluoride levels above WHO guidelines, bone char provides a natural, low-cost defluoridation option. Field studies in East Africa and India report consistent fluoride reduction from 5-10 mg/L to below 1.5 mg/L. See our complete guide to fluoride removal with bone char for technical specifications and field data.

Decolorization in Sugar and Food Processing

Bone char has a century-long track record in sugar refining. It effectively adsorbs organic colorants while adding minimal taste or odor. Some processors prefer bone char for specific color profiles that activated carbon does not achieve.

Low-Cost Community Systems

In developing regions where imported activated carbon is expensive or unavailable, locally produced bone char offers a practical alternative. Simple fixed-bed columns require minimal technical expertise to operate.

Applications Requiring Mineral Content

Bone char adds calcium and phosphate to treated water in trace amounts. In certain agricultural or aquaculture applications, this mineral contribution is beneficial rather than problematic.

Considering bone char for your filtration system? Review Feilong bone carbon specifications.

Bone Char vs Activated Carbon: When to Choose Activated Carbon

Activated carbon dominates most water treatment applications for good reason. Its extremely high surface area makes it the most versatile adsorption media available.

Organic Contaminant Removal

For removing pesticides, pharmaceutical traces, and industrial organic compounds, activated carbon is unmatched. Its surface area provides orders of magnitude more adsorption sites than bone char.

Chlorine and Chloramine Removal

Activated carbon is the standard media for dechlorination in municipal and industrial systems. Bone char has minimal capacity for chlorine removal.

VOC and Taste/Odor Control

Volatile organic compounds and taste- and odor-causing compounds are effectively removed by activated carbon. This makes it essential for drinking water treatment and bottled water production.

High-Flow Municipal Systems

Large municipal plants benefit from activated carbon's longer media life. Less frequent replacement means lower labor costs and less system downtime.

Regenerable Applications

Where thermal or chemical regeneration is feasible, activated carbon's regenerability provides long-term cost advantages. Bone char cannot be regenerated economically.

Sourcing Quality Adsorption Media

Whether choosing bone char or activated carbon, media quality varies significantly between suppliers. Procurement managers should verify several factors before committing to bulk orders.

For Bone Char

Request documentation on carbonization conditions, calcium phosphate content, and surface area. The carbonization temperature and atmosphere directly affect adsorption capacity. Bone char produced at inconsistent temperatures will perform unpredictably.

Test sample batches in pilot columns with your actual source water. Bone char quality depends heavily on raw material source and process control. A Certificate of Analysis should document chemical composition for every production lot.

Ask about raw material traceability. Reputable manufacturers use regulated bovine bone sources and maintain documentation for export compliance.

For Activated Carbon

Verify the source material and activation method. Coconut shell activated carbon performs differently from coal-based carbon. Steam-activated carbon has different pore structures than chemically activated products.

Request iodine number and molasses number data. These standard tests indicate capacity for different contaminant types. An iodine number below 800 mg/g suggests lower-quality carbon.

Check for dust content and particle size distribution. Excessive fines increase pressure drop in columns and create handling problems.

Need help evaluating adsorption media quality? Review Feilong's quality control and testing protocols.

Luohe Feilong Bone Carbon for Water Treatment

Luohe Feilong Bone Carbon Co., Ltd. produces bone char from defatted bovine bone under controlled carbonization conditions. As an experienced bone char manufacturer with over 30 years of company history and 20 years of specialized bone product manufacturing, Feilong controls production from raw material intake through final sizing and testing.

Our bone carbon is available for water treatment, decolorization, and industrial filtration applications. We provide Certificates of Analysis with every batch and offer sample quantities for pilot testing before bulk commitment.

For water treatment engineers comparing bone char vs activated carbon, Feilong provides technical consultation on media selection, bed sizing, and performance expectations based on your source water characteristics.

Evaluating bone char for your water treatment system? Request a sample batch with full COA or speak with our technical team about your filtration requirements.

Conclusion

The bone char vs activated carbon decision — or the broader bone carbon vs activated carbon question — is not about superiority. It is about matching media properties to treatment objectives.

Activated carbon delivers unmatched surface area and broad organic contaminant removal. It is the right choice for dechlorination, VOC removal, and high-flow municipal systems where capacity and regeneration matter.

Bone char offers natural adsorption plus ion exchange capability at lower cost per kilogram. It excels in fluoride reduction, sugar decolorization, and community-scale systems where simplicity and local sourcing matter.

For many applications, the two media complement rather than replace each other. A primary bone char bed for fluoride or color removal followed by activated carbon polishing for organics can deliver comprehensive treatment at optimized cost.

Success depends on three fundamentals: accurate source water characterization, honest assessment of which contaminant removal mechanisms you need, and reliable media sourcing from manufacturers with documented process control.

Ready to test bone char in your water treatment system? Request a free sample with COA or contact our technical team to discuss your specifications.
